Technical parameters

Product structure Description:

-------------------------------------------------------------------------------

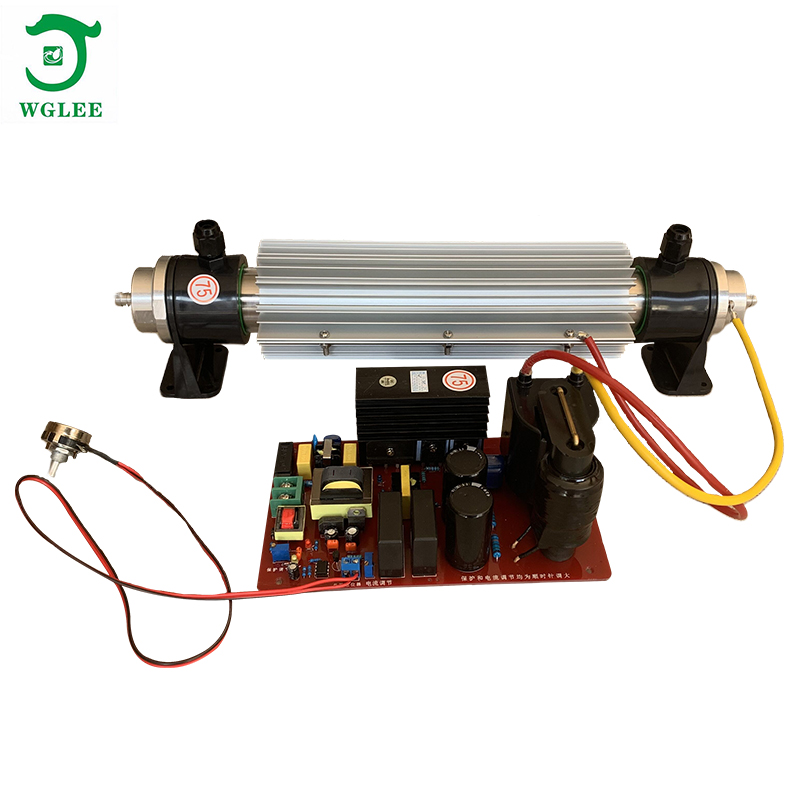

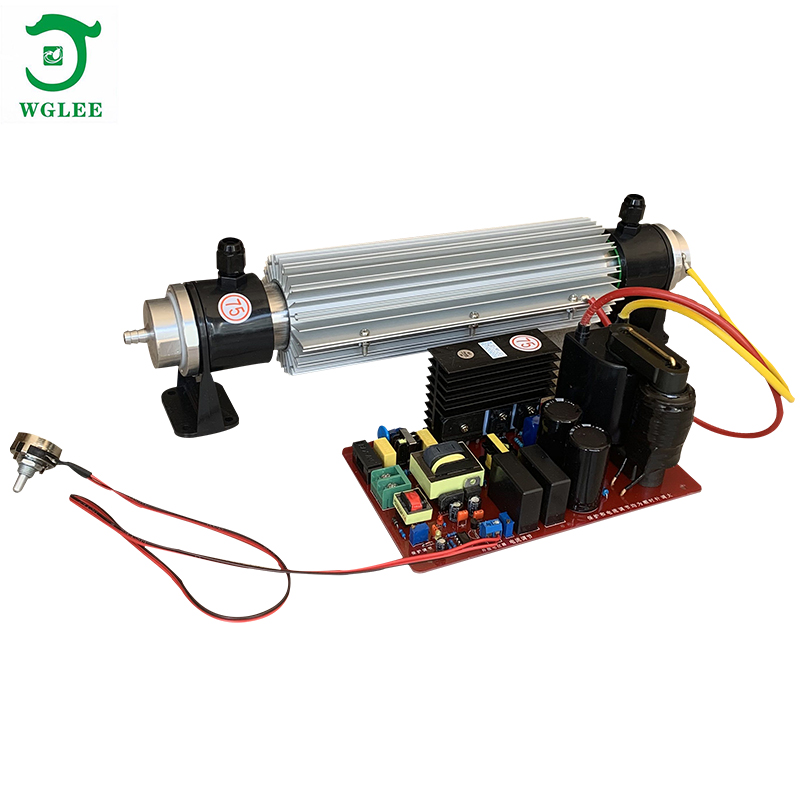

1、The quartz tube 30G/H adjustable ozone generator accessory consists of the quartz ozone tube and the high-voltage adjustable power supply.

2、Composition and characteristics of quartz tube: internal electrode 316L stainless steel, external electrode aluminum alloy radiator, dielectric material content above 99.7% silica quartz pipe, PVDF and fluorine gel seal original combination, external electrode air cooling, nozzle size of 6 * 10 fast twist, using 8 * 10MM or 7 * 9 antioxidant pipe connected (ferrofluorlon tube), the main characteristics of dielectric dielectric Changshu, medium toughness is good transportation, low thermal expansion coefficient, gas source pressure resistance 0.3MPA. The normal service life is generally in 20,000 hours.

3、Composition and characteristics of high voltage power supply: vacuum epoxy high voltage package; FR4 short circuit board PCB, short circuit protection, adjustable power, normal service life of more than 8K hours.

Equipment use instructions

-------------------------------------------------------------------------------

KZ-30 G quartz tube ozone generator accessories are the main core components of the ozone machine. The gas source is available with oxygen and available air, which can be used where ozone sterilization or purification is required, and is generally used in water treatment or air treatment.

-------------------------------------------------------------------------------

Step 1: the high pressure power supply and ozone pipe installed on the insulation board, the insulation board fixed in the chassis, note: the ozone pipe and high pressure power supply are more than 3 cm from the metal box shell (if the high pressure part is too close to the metal box housing, may form a high pressure vortex to affect the use or even damage), the ozone pipe installed in the convection space, ensure that the fan on the working time can blow to the radiator of the ozone pipe, ensure the external electrode air cooling of the ozone pipe, cooling water with the internal diameter 8~10MM pipe, without leakage, the cooling water> 3L/MIN temperature is not higher than normal temperature.

Step 2: installation of air intake and ozone outlet: the nozzle of ozone nozzle, any end of the intake, intake duct material can be silicone or PVC pipe, outlet with antioxidant pipe (tetrafluorine pipe, fluorine hose, etc.), the requirement is no gas, whether oxygen or air, to ensure that gas clean and dry, temperature is not higher than 45℃, humidity can not be more than 70%RH.

Step 3: Check the line: high-voltage line connects two electrodes of ozone pipe, two high-voltage line do not touch together. If the installed position will make two high-voltage line touch together, you can use 2MM thick hose to be used to cover on any high-voltage line. Other lines or items in the chassis are not allowed to touch the high-voltage lines.

Ozone tube

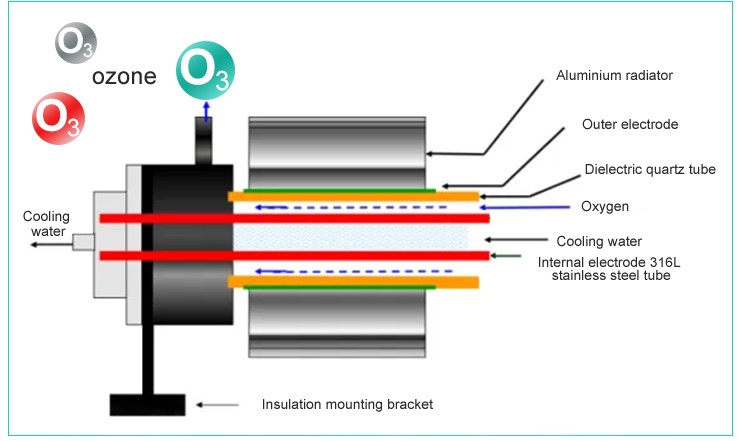

Structural diagram:

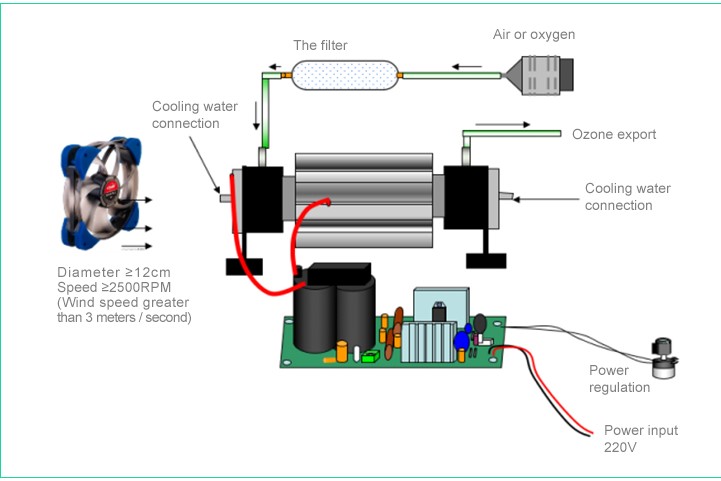

Installation diagram shows:

Installation instructions: red high voltage wire connecting aluminum radiator and yellow high voltage wire connecting any fixed ring at both ends of the pipe

Use of precautions

-------------------------------------------------------------------------------

1、After receiving the goods, please check the equipment for damage or missing parts, to ensure that there is no problem and then put into the installation and operation link.

2、During component installation, pay attention to take gently to avoid falling.

3、After installing the equipment, check the problems between the air circuit and circuit, and ensure that the power is correct.

4、Equipment installation to ensure that the high pressure is not discharged to the chassis enclosure, the high pressure is dangerous.

5、Do not be used in inflammable and explosive places.

6、Ensure the air cooling is cooled by convection and the ozone pipe shall not be higher than 60℃.

7、Ozone export concentration of ozone is high, the human body do not contact ozone for a long time, ozone put into the confined space can be naturally decomposed after the machine stopped working 60 minutes, before people can enter.

8、Non-professional personnel do not open the chassis. General electrician can open the chassis after consulting with the professional maintenance personnel.

9、If the equipment is used in water treatment, make sure that the gas-water mixing device does not have water flowing back into the gas path of the ozone pipe, otherwise the high pressure short circuit will result.

Daily maintenance

-------------------------------------------------------------------------------

1、Installed equipment shall be placed in a dry, ventilated and clean environment with an ambient temperature between-7~40℃ with relative humidity less than 85%RH.

2、During equipment maintenance, power supply.

3、Regularly check the general discharge on the equipment, remove more dust in time.

4、The equipment can work continuously for 24 hours, but ensure that the equipment is well heated and ventilated.

5、Cleaning the wet towel must be wrenched for use, do not splash water inside the machine.
