Product size

(L*W*H)cm

42*30*80

42*30*80

55*40*80

Ozone production (g/h)

20

30

50

Ozone concentration (mg/L)

15-25

15-25

15-25

Ozone power consumption (W)

300

400

1000

Input power

AC220V/50HZ

AC220V/50HZ

AC220V/50HZ

Working voltage (KV)

3-7

3-7

3-7

Power frequency

＞3000

＞3000

＞3000

Air intake (L/Min)

L /min 40-50

60-70 L /min

100L /min

Air intake pressure (MPa)

0.01-0.03

0.01-0.03

0.2

Air intake temperature (℃)

≤20

≤20

≤20

Gas source dew point (℃)

≤50

≤50

≤50

Cooling mode

Air cooling +  water cooling

Air cooling +

water cooling

Air cooling +

 water cooling

Cooling water temperature (℃)

≤30

≤30

≤30

Cooling water inlet and outlet

 10 mm Pagoda

 10 mm Pagoda

 10 mm Pagoda

Ozone export

10 mm Quick twist

10 mm Quick twist

10 mm Quick twist

Cooling water (L/h)

1400

1400

1400

Working environment conditions

The ambient temperature ≤45℃, RH≤80%, strictly prohibited in flammable and explosive places

Use of gas sources

Air sources

Air sources

Air sources

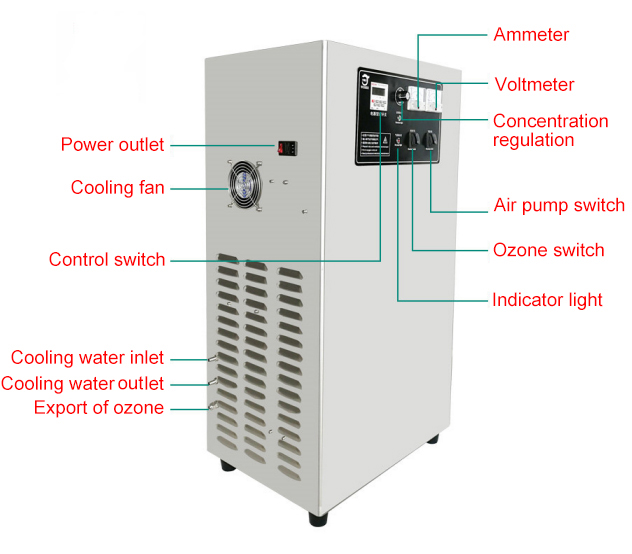

Machine configuration

Micro-gap discharge ozone tube, high-frequency high-voltage power supply, air compression pump, air filter, strong cooling fan, control circuit (timer, working indicator, air pump switch, ozone switch, etc)

Main features

1、Automatic operation (16 sets of timing switch settings, time error ±2 seconds / month), can achieve unmanned operation;

2. manual work (free switch, can be used at any time, easy to temporary use or experiment);
