1KG/H Ozone Generator
I. OVERVIEW
ozone profile ozone is a broad-spectrum, efficient and rapid bactericide, it can quickly kill all kinds of bacteria, viruses and microorganisms, can remove toxic substances in water, reduce organic carcinogens such as halogenated hydrocarbons in water, excess ozone can be decomposed into oxygen, no secondary pollution, harmless to human body. the associated physicochemical reactions occurred after the ozone gas dissolved in water, resulting in extremely active, strongly oxidized unit oxygen (O), hydroxyl (OH). Hydroxyl redox potential is 2.8 V, which is equivalent to the oxidation ability of fluorine. Therefore, ozone water has stronger and faster oxidation and sterilization ability than ozone gas, and rapid decomposition without any pollution and residue. Ozone water has been widely used in related industries and can replace traditional disinfectants such as peracetic acid, chlorine, hydrogen peroxide, potassium permanganate and sodium hypochlorite.
The Vangerine Kg series ozone generator is a high frequency ozone generator designed by using dielectric barrier discharge principle and micro gap discharge. It is an ideal choice for industrial ozone generator with high concentration, good stability and international standards.

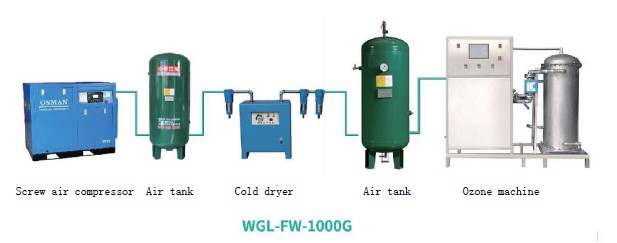

II. Product pictures
III. List of product configurations
Serial number | Name of name | Model parameters | Quantity | Origin and Brand |
One | ||||
Ozone Layer Host host Integration | Ozone discharge chamber | External 304 inner L 316 | 1 set | VANGE |
Ozone control cabinet | 304 stainless steel | 1 set | VANGE | |
PLC system | S7-200smart | 1 set | Siemens | |
Touchscreen | 7 inches | 1 set | Kunlun Tongtai | |
Transformer | kw 10 | 1 set | VANGE | |
Ozone power supply | 18.5 kw | 1 set | VANGE | |
Three-phase acquisition module | JBLGK-305 | 1 set | Siemens | |
Electric switch valve | DN25 | 2 units | Sdert | |
Pressure regulating valve | DN25 | 1 unit | Wenzhou Jinyuan | |
Pressure transmitter | Diffusion silicon 0-0.3 Mpa | 1 | Hennessy Technology | |
Temperature transmitter | 0-100℃ | 2 | Hennessy Technology | |
Flow switch | DN25 | 1 | Heng Teng | |
Gas Flowmeter | DN25 | 1 set | Far East Electric | |
Water Flowmeter | DN25 | 1 set | Calvert | |
Local pressure | Mpa 0-0.4 | 2 | Constant pneumatic | |
Flow switch | DN25 | 1 | Heng Wei | |
Base and fittings | ———— | 1 set | VANGE | |
II | ||||
1 | Screw Air Compressor | 7.5 KW 380V | 1 unit | Kaishan, Zhejiang |
2 | Gas storage tanks | 600L | 2 units | Foshan |
3 | Cold dryer | 15AA | 1 unit | Kaishan, Zhejiang |
4 | QSP filters | Dust removal, water removal, oil removal | 3 | Kaishan, Zhejiang |
5 | Suction machine | 15AA | 1 unit | Hommelier |
6 | Cooling water pump | 750W | 1 unit | |
8 | Link pipe fittings | 1 set | VANGE | |
IV. Technical parameters of the ozone mainframe
Product specifications | 160*65*160(length*width*high CM) |
Ozone production | 1000 g/h |
Input voltage | 380V/50HZ |
Rated power | 8kw/h |
Output frequency | 6KHZ |
Output voltage | 5KV |
Intake pressure | <0.2 Mpa |
Ozone concentration | 15-25 mg/L |
Gas flow | 50 m³/h |
Air inlet and outlet dimensions | DN25 |
Size of inlet and outlet | DN25 |
Environment | Dry clean, temperature-10-40℃, relative humidity ≤85% RH, It is strictly forbidden to use in flammable and explosive occasions. |
Cooling mode | Water cooling flow >40 L/min water temperature <35℃ |
Land area | 15㎡ |
Delivery and after-sale | Production cycle within 30 working days delivery equipment free of warranty for one year life-long maintenance. |
V、Product characteristics
1. cellular ozone tubes: multiple ozone tube combinations, The inner shape is close to the honeycomb shape, So called cellular ozone tubes, High purity dehydroxy quartz tube, Dehydroxylation less than 10 ppm, Above 98% SiO2, Temperature 1600 degrees, 30 KV, Pressure Far higher than the matching high frequency high voltage power output peak high voltage 7 KV, Will not be destroyed by high voltage breakdown. Internal electrode: titanium alloy, Corrosion resistance is better than 316 stainless steel, In high - voltage, high - frequency, Use 5 years will not be oxidized black rust deformation; Discharge gap :0.4 MM; Sealing material: stainless steel flange, Polytetrafluoroethylene plate with fluorinated rubber rings, Antioxidant, acid - resistant, The service life can reach 8 years.
2. ozone discharge chamber is the patented technology of our company. The external electrode is made of stainless steel. It adopts high concentration ozone tube and the discharge chamber adopts full sealing technology, and the operation is reliable.
3. power supply unit (PSU) is the core technology of this series of models, including frequency conversion and boost two major processes, set up automatic soft start function, with strong load capacity and multiple protection functions, efficient and stable.
VI. Acceptance criteria
The quality of the goods shall be carried out according to the national, industry standards and user requirements, and the equipment shall be inspected one by one before leaving the factory, and the product certificate shall be issued after the inspection is qualified before leaving the factory
