Product Description

80G/H ozone generator accessories

Technical parameters

-----------------------------------------------------------------------------

Name :80 g/h Ozone Generator Accessories (Power + Ozone Tube)

Model: FW-80g

Working voltage: AC220V/50HZ

Power :10-650 W Adjustable

Output voltage:4 kV

Output frequency :6 KHZ

Cooling mode: Water cooling

Source: Dry, clean oxygen or air

Ozone production: 80g/h

Ozone concentration: oxygen source 80-120 mg/L; air source 8-12 mg/L

Air intake: oxygen 15 L/min    Air 90-100 L/min

Working ambient temperature :-7~45℃

 Working humidity :85%≤ RH

Shape size: ozone tube size (length * width * height):680*120*120 mm

power supply size :250*135*85 mm

Cooling water inlet :1/2

Cooling water outlet :1/2

Air inlet :1/4

Ozone exports :1/4

Description of product structure:

-------------------------------------------------------------------------------

1、80g/h ozone generator accessories include: ozone tube and high voltage adjustable power supply.

2、The composition and characteristics of ozone tube: inner electrode 316 L stainless steel, external electrode 316 L stainless steel tube, dielectric material is controlled by silica quartz with content of 99.99%, voltage 0.4 MPA, quartz tube generator is characterized by high dielectric constant. Medium toughness is not easy to break during transportation, low thermal expansion coefficient. Normal service life is generally more than 30,000 hours.

3、The composition and characteristics of high voltage power supply: vacuum epoxy high voltage package; FR4 circuit board PCB, short circuit, open circuit, overcurrent protection, power adjustable, normal service life of more than 8 K hours.

4、Equipment advantages: ozone tube shell is 304 stainless steel material, precision assembly, ozone production, high concentration, long life, the shell is not charged, can be touched by hand, not easy to damage during transportation.

Description of use of equipment

-------------------------------------------------------------------------------

FW-80G ozone generator accessories are the main core components of the ozone machine, the gas source can be oxygen or air, can be used in the need of ozone sterilization or purification, generally use space sterilization disinfection, deodorization, decolorization, various raw water sewage treatment.

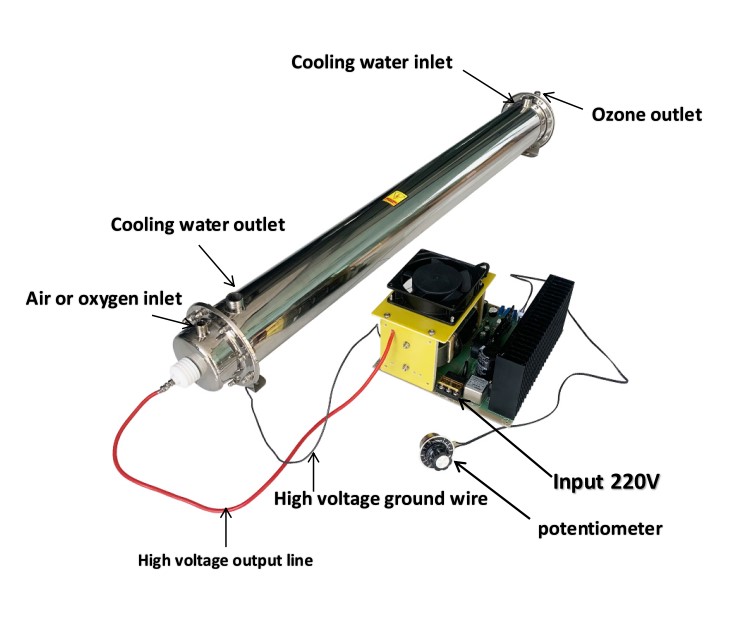

Installation diagram:

Note: red line is high voltage output line, link ozone tube electrode. Black line is high voltage ground wire, link ozone tube shell.

Equipment installation instructions

-------------------------------------------------------------------------------

Step 1: The high voltage power supply is installed on the insulation board, the ozone tube can be fixed directly on the chassis, the insulation board is fixed in the chassis, it should be noted that the high voltage power supply is more than 5 cm from the metal case shell (if the high voltage part is too close to the metal case shell, it may form high voltage eddy current to affect use or even damage), ensure that the cooling water inlet and outlet of the ozone tube are connected.

Step 2: installation of air inlet and ozone outlet: the upper end of ozone pipe is air inlet, the lower end is ozone outlet, the air inlet pipe material can be silicone tube or PVC pipe, the outlet is connected with anti-oxidation pipe (tetrafluorine tube, fluorine hose, etc.), Do not leak. The gas entering the inlet of the ozone tube, whether oxygen or air, should ensure that the gas is clean and dry, the temperature should not be higher than 40℃, and the humidity should not be greater than 85% RH.

Step 3: check the line: after the high-voltage line and the high-voltage ground wire are connected to the ozone tube, try to connect the high-voltage line with the shortest distance. Avoid high-voltage wire touching other lines or objects in the chassis according to the position of installation.

Use of caveats

-------------------------------------------------------------------------------

1、After receiving the goods, please check if the equipment is damaged or missing spare parts, make sure there is no problem and then put into installation.

2、During the installation of components, please pay attention to light and light release to avoid damage.

3、After the installation of the equipment, check the gas circuit and circuit again before power on to ensure that the power is correct.

4、Equipment installation to ensure that the high-voltage does not leak to the chassis shell, high-voltage danger.

5、It is forbidden to use in flammable and explosive places.

6、Ensure that the air cooling is good convection heat dissipation, ozone tube working temperature should not be higher than 60℃.

7、Ozone export ozone concentration is high, human body do not contact ozone for a long time, ozone placed in a closed space can stop working 20 minutes before entering.

8. equipment is used in water treatment, make sure that the gas-water mixing device does not have water reflux to the ozone tube, otherwise it will lead to high voltage short circuit.

Daily maintenance

-------------------------------------------------------------------------------

1、The equipment shall be placed in a dry, ventilated and clean environment with ambient temperature between -7~40℃ and relative humidity less than 85% RH.

2、Equipment maintenance, need to be cut off operation.

3、Check the ventilation and exhaust on the equipment regularly. If there is more dust, please clean up and install it back in place.

4、The equipment can work continuously for 24 hours, but please ensure that the equipment is well ventilated.
