Technical parameters

-----------------------------------------------------------------------------

Name :7 G/H Ozone Generator Accessories (Module Power Supply + Ozone Tube)

Model: KS-7G

Operating voltage: AC220V/50HZ

Power supply :60-65 W

Cooling mode: air cooling

Supply: Dry and clean oxygen or air

Ozone production :7 G/H

Ozone concentration: oxygen source 70-110 mg/L; air source 8-12 mg/L

intake: oxygen 1-2 L/min air 15-20 L/min.

Working environment temperature :-7~45℃

Working environment humidity :≤85% RH

Shape Size: Ozone Tube Size (Length*Width*High):225*56*66 mm Power Size :145*55*45 mm

Net weight :0.85 KG

nozzle size: inner diameter 3 mm outer diameter 7 mm pagoda joint (additional inner diameter 4 mm outer diameter 10 mm nozzle for selection)

mounting dimensions: power mounting hole spacing :132 mm, aperture :φ6mm.:

Ozone tube mounting hole spacing :47*92 mm, aperture :φ4.2mm:

Description of product structure:

-------------------------------------------------------------------------------

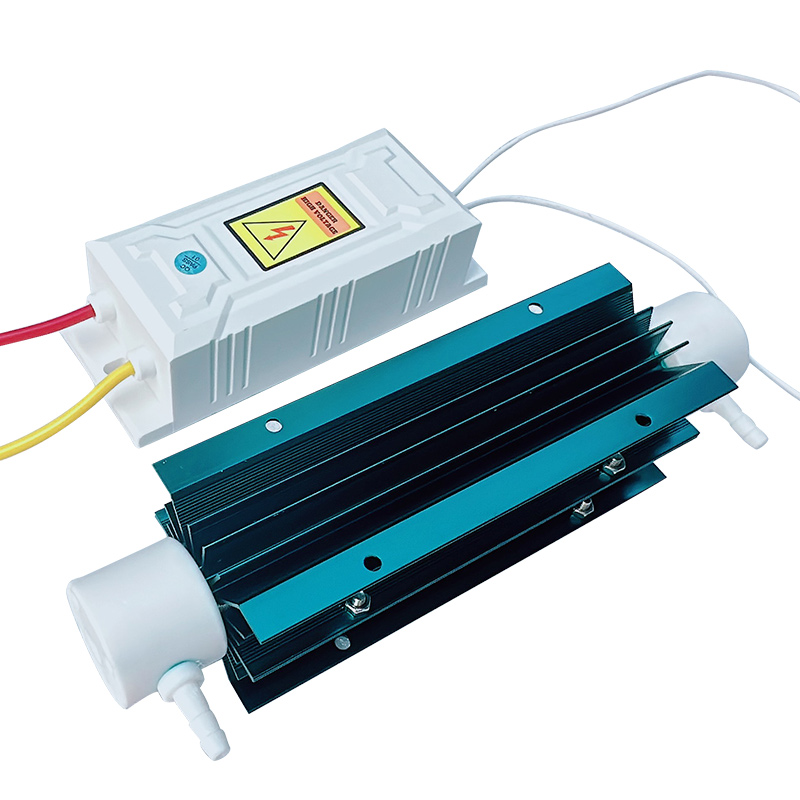

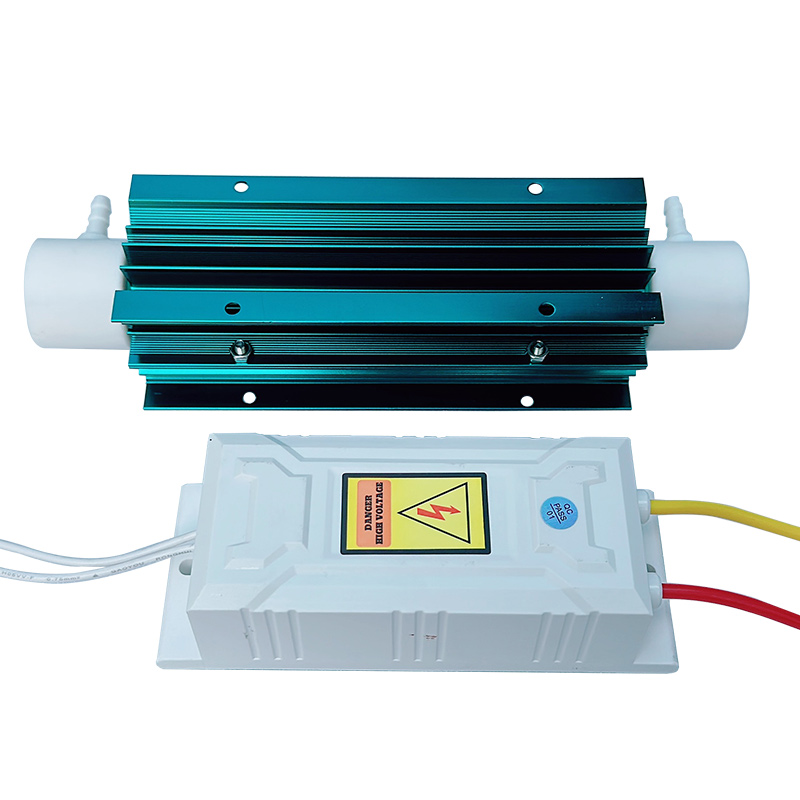

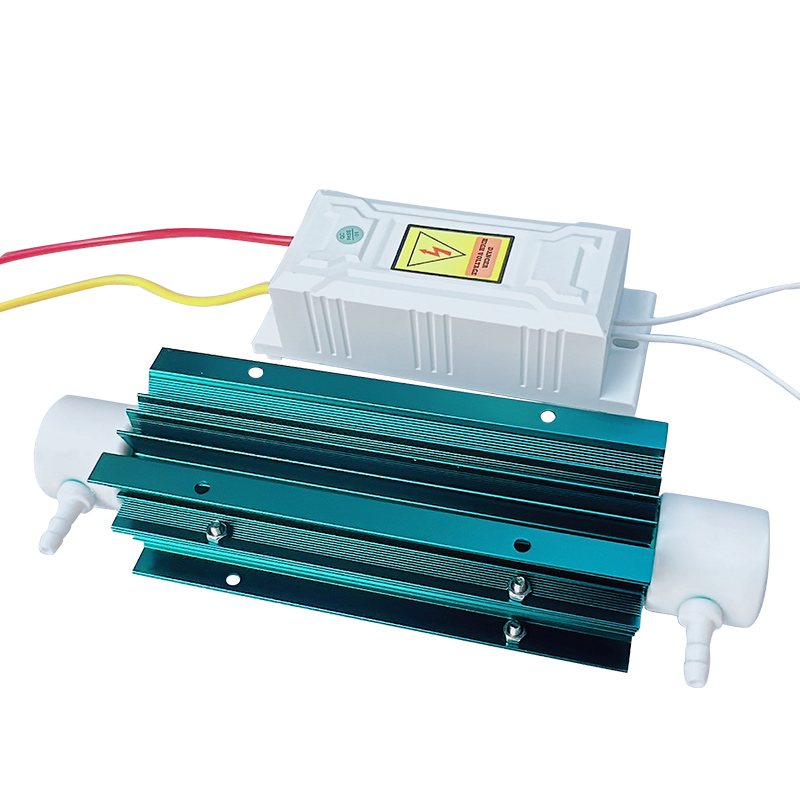

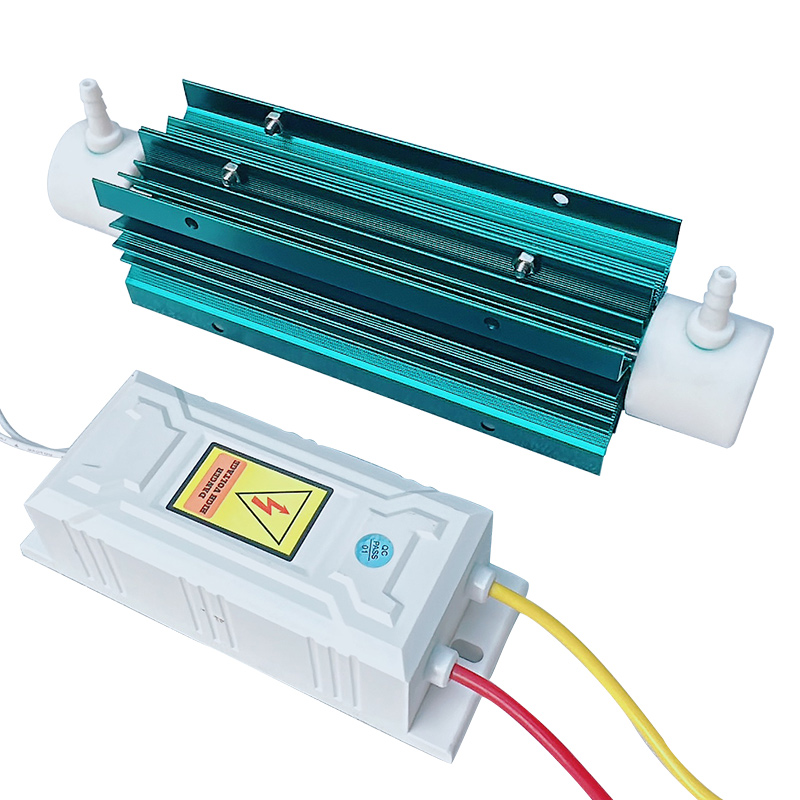

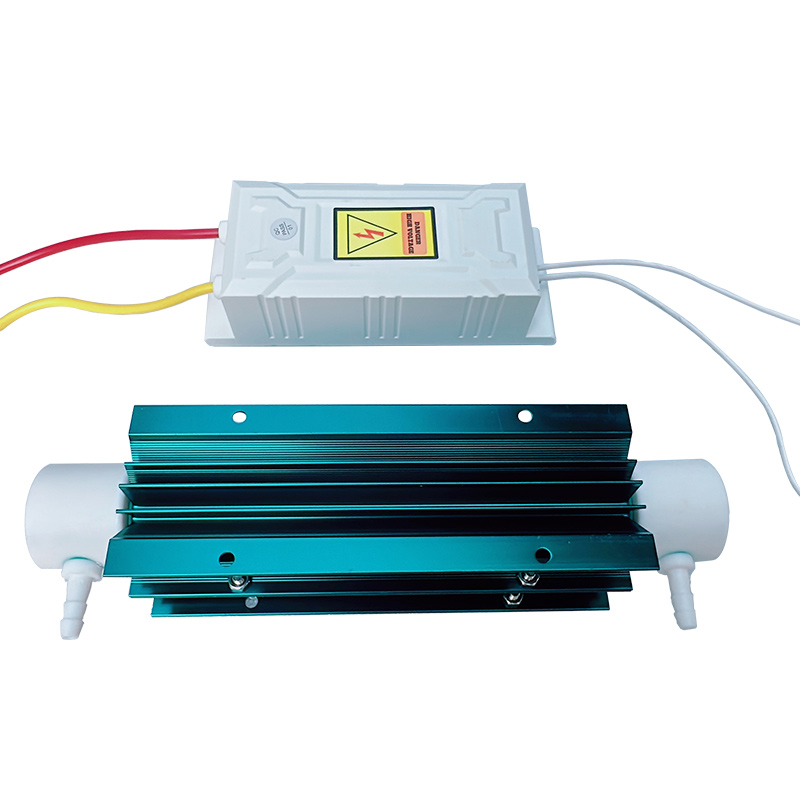

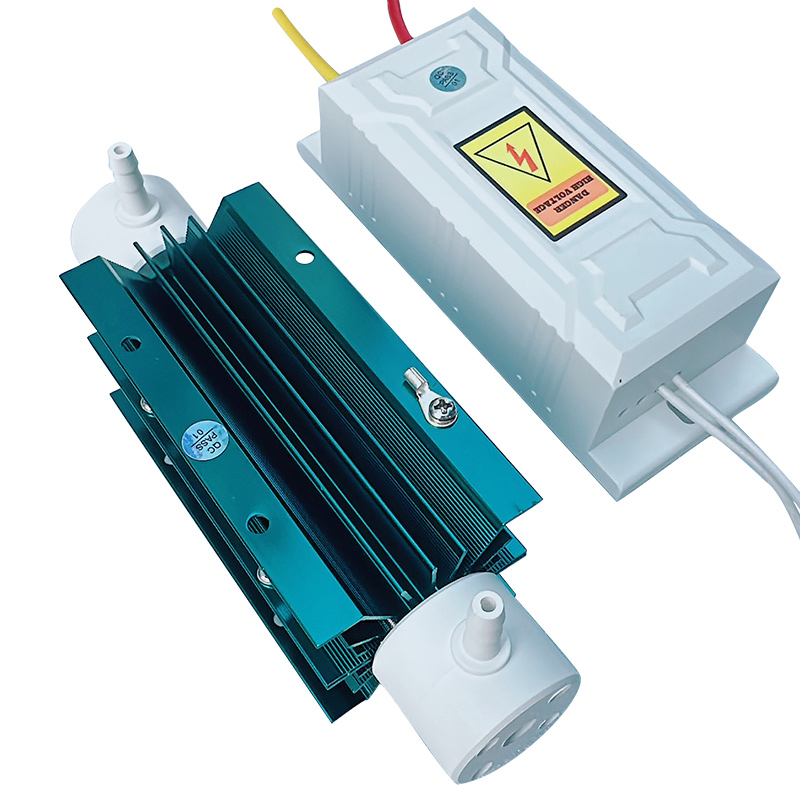

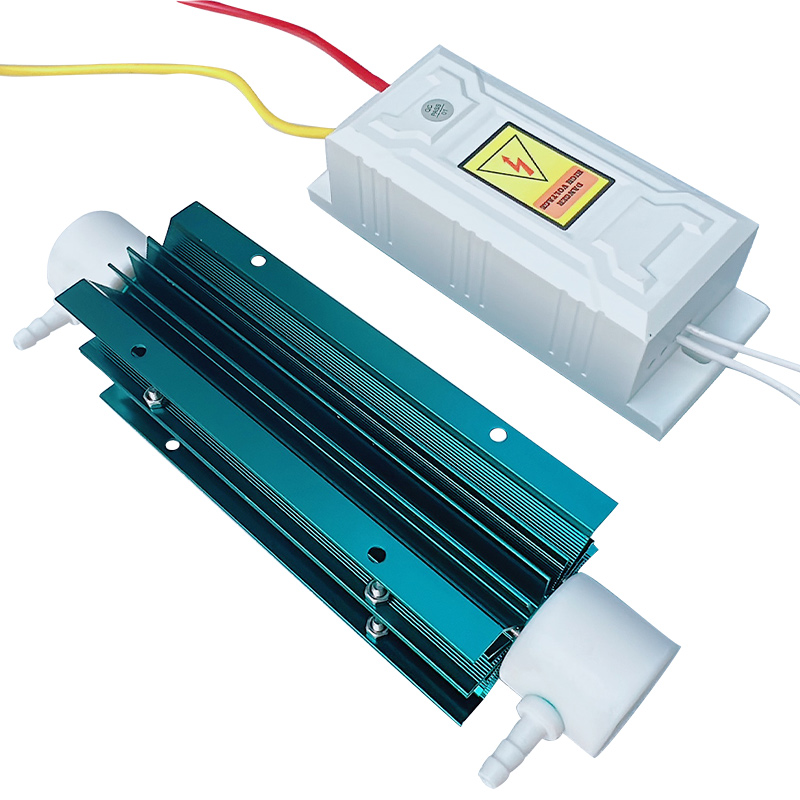

1、7G/H ozone generator accessories include: ozone tube and high voltage adjustable power supply.

2、The composition and characteristics of the ozone tube: internal electrode 316 L stainless steel, external electrode aluminum alloy heat sink, dielectric material is more than 99.7% of silica quartz control, PTFE and fluoro-gel seal from the combination of the original, external electrode air-cooled, quartz tube generator is mainly characterized by high dielectric constant, good dielectric toughness in transit is not easy to break, low thermal expansion coefficient, pressure 0.3 MPA.. Normal service life is generally more than 20,000 hours.

3、Structure and characteristics of high voltage power supply: vacuum epoxy high voltage package; FR4 circuit board PCB, short circuit, open circuit, overcurrent protection, power adjustable, normal service life more than 18000 hours

Description of equipment use

-------------------------------------------------------------------------------

KS-7G ozone generator accessories are the main core components of ozone machine, gas supply can be used oxygen or air, can be used in the need of ozone sterilization or purification, the general use of space sterilization disinfection, deodorization, decolorization, all kinds of raw water sewage treatment.
